SRAC 外圆车刀架

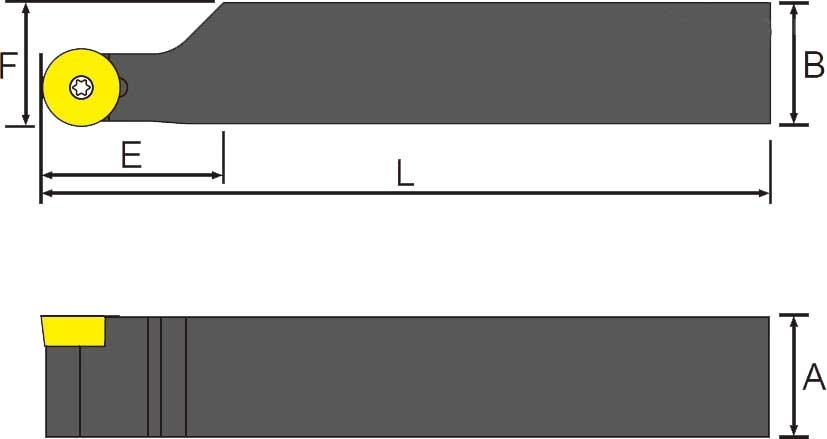

商品型号 | 在库 | 寸法(mm) | 刀片 | 螺丝 | 旗型板手 | |||||
---|---|---|---|---|---|---|---|---|---|---|
R | L | A | B | L | E | F | ||||
SRACR/L-3.3K06 | 9.5 | 9.5 | 125 | 16 | 9.9 | RC□□0602 | CS25 | T-8 | ||
SRACR/L-1010K06 | 10 | 10 | 125 | 11 | 10 | RC□□0602 | CS25 | T-8 | ||
SRACR/L-1212K06 | 12 | 12 | 125 | 14 | 12.3 | RC□□0602 | CS25 | T-8 | ||
SRACR/L-1616K06 | 16 | 16 | 125 | 14 | 16.3 | RC□□0602 | CS25 | T-8 | ||
SRACR/L-2020K06 | 20 | 20 | 125 | 12 | 20.4 | RC□□0602 | CS25 | T-8 | ||
SRACR/L-2525M06 | 25 | 25 | 150 | 12 | 25.4 | RC□□0602 | CS25 | T-8 | ||
SRACR/L-3.3K08 | 9.5 | 9.5 | 125 | 16 | 9.9 | RC□□0803 | CS30 | T-10 | ||
SRACR/L-3.4K08 | 9.5 | 9.5 | 125 | 16 | 13.1 | RC□□0803 | CS30 | T-10 | ||
SRACR/L-4.4K08 | 12.7 | 12.7 | 125 | 16 | 13.1 | RC□□0803 | CS30 | T-10 | ||
SRACR/L-1212K08 | 12 | 12 | 125 | 16 | 12.4 | RC□□0803 | CS30 | T-10 | ||
SRACR/L-16160K08 | 16 | 16 | 125 | 16 | 16.4 | RC□□0803 | CS30 | T-10 | ||
SRACR/L-2020K08 | 20 | 20 | 125 | 16 | 20.4 | RC□□0803 | CS30 | T-10 | ||
SRACR/L-2525M08 | 25 | 25 | 150 | 16 | 25.4 | RC□□0803 | CS30 | T-10 | ||
SRACR/L-1212K10 | 12 | 12 | 125 | 12 | 12.4 | RC□□1003 | CS30 | T-10 | ||
SRACR/L-16160K10 | 16 | 16 | 125 | 16 | 16.4 | RC□□1003 | CS30 | T-10 | ||
SRACR/L-2020K10 | 20 | 20 | 125 | 20 | 20.4 | RC□□1003 | CS30 | T-10 | ||
SRACR/L-2525M10 | 25 | 25 | 150 | 20 | 25.4 | RC□□1003 | CS30 | T-10 | ||
SRACR/L-2525M10T3 | 25 | 25 | 150 | 20 | 25.4 | RC□□10T3 | CS35 | T-15 | ||
SRACR/L-2525M12 | 25 | 25 | 150 | 20 | 25.4 | RC□□1204 | CH40 | T-15 |
![1687062220721075.jpg 637747343017674712437.jpg](/static/upload/image/20230618/1687062220721075.jpg)
